Culverts might not seem like the most exciting part of a construction job, but if you mess one up, you’ll hear about it for years. A poorly installed culvert can lead to flooding, driveway washouts, and some very unhappy homeowners. So, let’s break it down step by step and cover everything you need to know to install a culvert properly.
Step 1: Choosing the Right Culvert Pipe
Before you grab a shovel, you need to figure out what type and size of culvert pipe you need. Here’s what to consider:
Drainage Needs:
- How much water needs to flow through the culvert? This depends on factors like rainfall, soil type, and the size of the area draining into the culvert.
- A rule of thumb: A 12-inch diameter pipe is often enough for small driveways, but larger areas may need 18 to 24 inches or more.
Pipe Material:
- Corrugated Metal Pipe (CMP): Durable and strong, but prone to rust over time.
- High-Density Polyethylene (HDPE): Lightweight, resistant to corrosion, and easier to handle.
- Concrete Pipe: Super durable but heavy and harder to install.
Step 2: Calculating the Right Size
To determine the correct pipe size, you can use the Rational Method formula:
Q = CiA
Where:
Q = Peak discharge (cubic feet per second)
C = Runoff coefficient (varies by surface type)
i = Rainfall intensity (inches per hour)
A = Drainage area (acres)
Example Calculation:
Suppose you’re dealing with a 2-acre drainage area with a runoff coefficient of 0.3 (typical for grassy areas), and the rainfall intensity is 2 inches per hour. Plugging these into the formula:
Q = 0.3 * 2 * 2
Q = 1.2 cfs
Once you calculate the flow, check local regulations or refer to charts that match flow rates to culvert diameters.

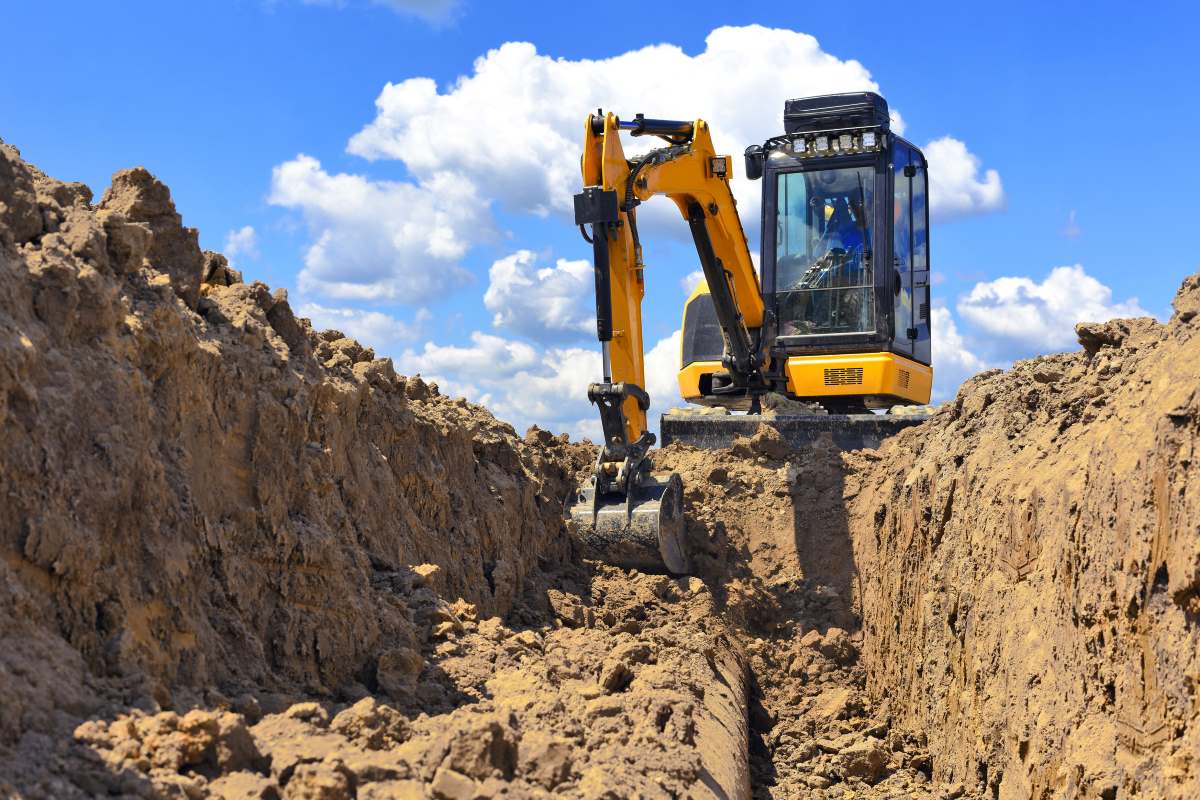

Step 3: Digging the Trench
Now for the fun part—digging. A culvert should be buried deep enough to provide proper coverage while allowing water to flow effectively.
Depth:
- The culvert should be placed at least 6 inches below the road surface for small pipes (up to 18 inches) and deeper for larger ones.
- Ensure a minimum cover of 12 inches of compacted material over the top.
Grade/Slope:
- The pipe should have a consistent slope of about 1-2% (1-2 feet drop per 100 feet length) to allow proper drainage.
- Use a laser level or string line to maintain an even grade.
Step 4: Installing the Culvert
Prepare the Base:
- Line the trench with a layer of gravel (4-6 inches thick) to provide a stable base.
- Compact the gravel to prevent settling over time.
Place the Pipe:
- Lay the culvert pipe in the trench with the correct slope.
- Make sure the pipe extends slightly beyond the edges of the driveway or road.
Backfill Carefully:
- Add gravel or crushed stone around the pipe in layers, compacting each layer as you go.
- Avoid using large rocks or debris that could damage the pipe.
- Cover with at least 12 inches of compacted fill material.
Step 5: Finishing Touches
End Treatments:
Consider adding flared end sections or headwalls to protect against erosion and keep the ends from washing out.
Erosion Control:
- Add riprap (large stones) around the inlet and outlet to slow water flow and prevent erosion.
- Seed and mulch disturbed areas to prevent silt buildup in the pipe.
Check for Settlement:
Over time, inspect the area for any signs of sinking or erosion and add fill as needed.
Step 6: Maintenance Tips
Once installed, a culvert isn’t a set-it-and-forget-it deal. Regular maintenance includes:
- Clearing debris like leaves and branches.
- Checking for blockages after heavy rains.
- Inspecting for cracks or signs of erosion around the ends.
Installing a culvert the right way takes a bit of planning and elbow grease, but doing it correctly will save you and your client a ton of headaches down the road. Remember—proper slope, solid base, and good backfill are key to a culvert that lasts.
